Description

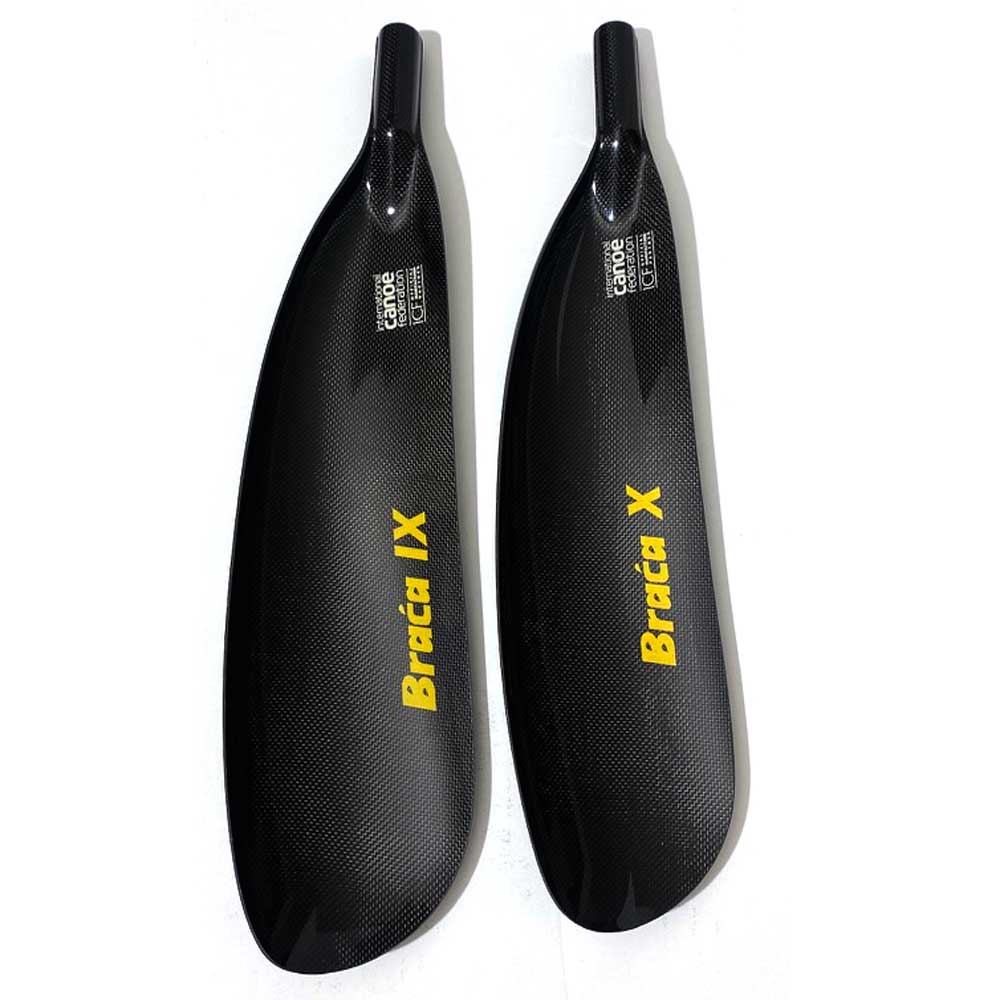

Braca IX/X Sizes and Blade Constructions
Slide table
Braca IX
Size | Surface Area
(cm2/in2) | L
(cm) | W
(cm) | Blade Construction |
|---|
| Standard | Extra Light | Marathon | Surfski | Soft | Carbon 60 |
| 680 | 680/105.4 | 49.5 | 15.0 | Standard | – | – | – | – | – |
| 705 | 705/109.3 | 50.0 | 15.3 | Standard | – | – | – | – | – |
| 740 | 740/114.7 | 51.5 | 15.8 | Standard | Extra Light | – | – | – | – |
| 765 | 765/118.6 | 51.8 | 16 | Standard | Extra Light | – | – | – | – |
| 800 | 800/124.0 | 52.2 | 16.2 | Standard | Extra Light | – | – | – | – |
|
|
Braca IX/X Shaft Options
Braca IX/X can be paired with any Braca shaft shown below.
Model # Stiffness = Deflection in mm
02K Stiffness = 2.6 (less flexible)
03K Stiffness = 2.8
04k Stiffness = 2.9
06K Stiffness = 3.0
17K Stiffness = 3.3 (more flexible)
19K Stiffness = 4.5 (most flexible)
Braca IX/X Shaft Length
When you order your paddle you need to enter a Custom Length and select Hand Control.
Length: You can use any 5cm or 10cm length depending on the shaft. See the image above or more info.
How to enter the custom paddle length:
- For 02K to 17K enter a 5cm range (ex: 207 – 212 cm)
- For the 19K enter a 10 cm range (ex: 207 – 217 cm)
All Braca paddles are available with a two-piece adjustable shaft that provides 5 cm or 10 cm of adjustability. This allows flexible adjustment of the overall paddle length and blade angle from 0° to 80° right or left in 5° increments. The system also allows you to disassemble the paddle into two parts for easy transportation.
Hand Control: Select Right or Left
Hand control determines which way to orient the locker, left-handed or right-handed.
