Description

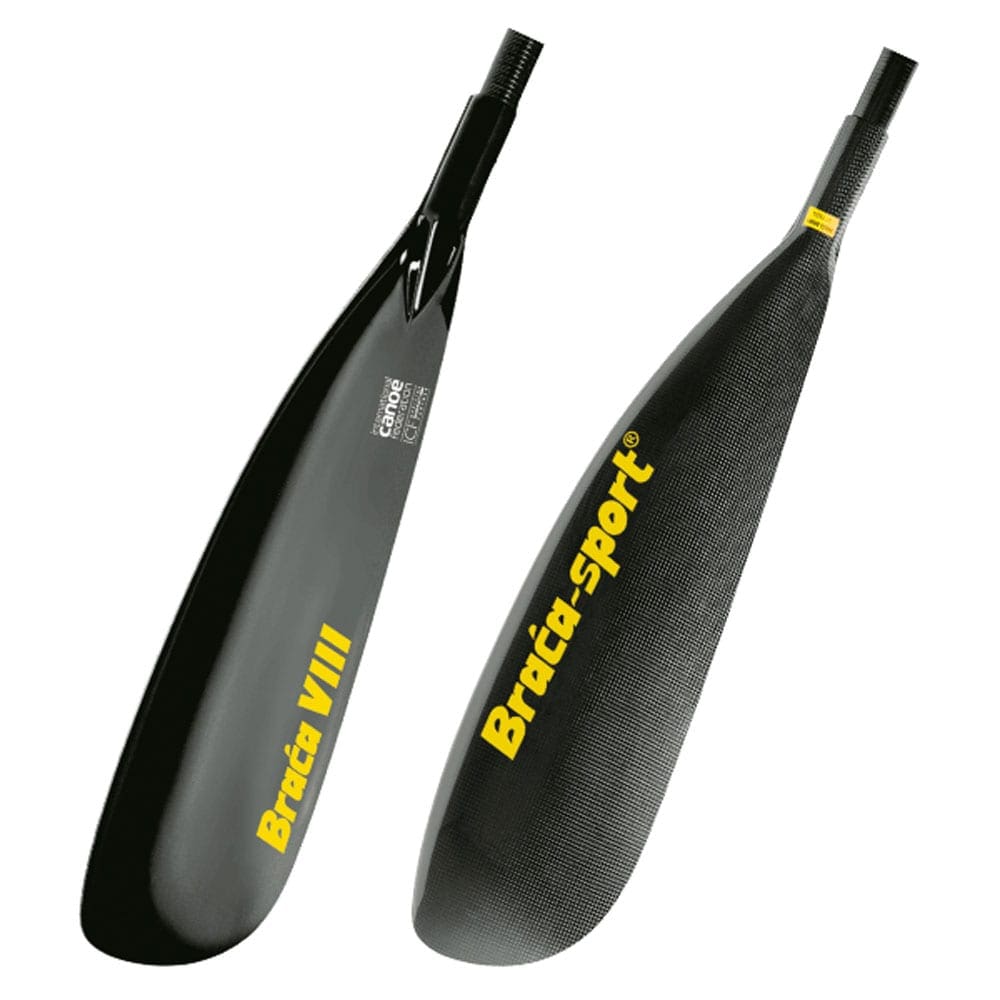

Braca VIII Sizes and Blade Constructions
Slide table
Braca VIII
Size | Surface Area
(cm2/in2) | L
(cm) | W
(cm) | Blade Construction |
|---|
| Standard | Extra Light | Marathon | Surfski | Soft | Carbon 60 |
| 767 | 767/118.9 | 57.3 | 14.6 | Standard | – | – | – | – | – |
| 799 | 799/123.8 | 57.4 | 15 | Standard | – | – | – | – | – |
| 837 | 837/129.7 | 57.5 | 15.5 | Standard | – | – | – | – | – |
Braca VIII Shaft Options
Braca VIII can be paired with any Braca shaft shown below.
The Braca VIII blades are long, so it’s essential to order a paddle that is long enough to accommodate the extra blade length. If the shaft is too short, your hands will be too close together even when you grip the paddle close to the top of the blade. This can lead to poor form and fatigue.
When you order a paddle you provide us with the total length in cm, for example 220 cm. The shaft length is the full length minus the blade length. If the blades are longer, such as Braca VIII, then the inner shaft length will be shorter than on an equivalent length Braca IV paddle.
Usually, we add about 10 cm to account for the extra blade length, the Braca VIII is about 7 cm longer, per blade, than standard wing paddles.
We can always shorten your paddle but we can’t make it longer without a new shaft.
Model # Stiffness = Deflection in mm
02K Stiffness = 2.6 (less flexible)
03K Stiffness = 2.8
04k Stiffness = 2.9
06K Stiffness = 3.0
17K Stiffness = 3.3 (more flexible)
19K Stiffness = 4.5 (most flexible)
Braca VIII Shaft Length
When you order your paddle you need to enter a Custom Length and select Hand Control.
Length: You can use any 5cm or 10cm length depending on the shaft. See the image above or more info.
How to enter the custom paddle length:
- For 02K to 17K enter a 5cm range (ex: 215 – 220 cm)
- For the 19K enter a 10 cm range (ex: 218 – 228 cm)
All Braca paddles are available with a two-piece adjustable shaft that provides 5 cm or 10 cm of adjustability. This allows flexible adjustment of the overall paddle length and blade angle from 0° to 80° right or left in 5° increments. The system also allows you to disassemble the paddle into two parts for easy transportation.
Hand Control: Select Right or Left
Hand control determines which way to orient the locker, left-handed or right-handed.
